REVOLVING DOOR WITH 9 DIGIT DISPLAY & BEEPER


Product name: 9 digit dot matrix display with beeper
Version: 03
Product phase: production
Current date: 06-04-2022
Material: Acrylic
Dimensions: 28 X 250
Product overview: 9 digit display helps you in displaying letters, numbers and symbols. Unit comes with red colour glowing digits. In built beeper helps you allot sound for processes.
Specifications:
  • Dimensions:
  • Beeper:yes
  • Supply: 12v DC
  • Colour of digits:red

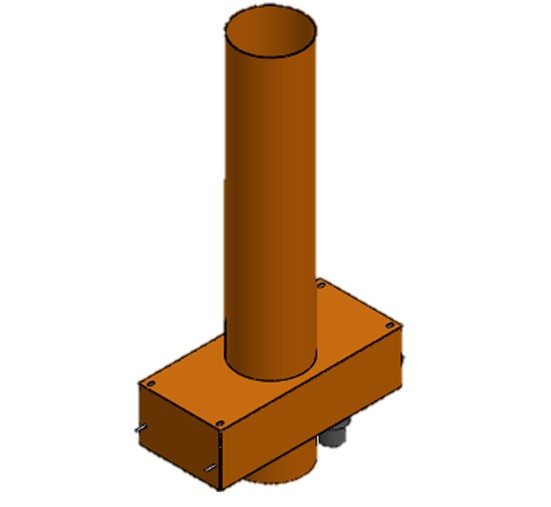

CUP DISPENSER 150ML

Product name: Cup dispenser
Version: 03
Product phase: production
Current date: 07-04-2022
Material: MS and acrylic
Usable cup: 150ml
Product overview:

Cup dispenser helps in dispensing single cup every time automatically. Careful arrangement of gears and sensors enable this device to dispense only one cup at a time without failure. This unit comes with poka-yokes for smooth operation Caution: Care to be taken before stacking the cups, uneven and damaged cups might cause trouble

Specifications:

  • Dimensions:
  • Sensors used:IR sensor and Magnetic reed switch
  • Motor:12v, 30RPM, 0.34NM

CUP DISPENSER 320ML

Product name: Cup dispenser
Version: 03
Product phase: production
Current date: 07-04-2022
Material: MS and acrylic
Usable cup: 320ml
Product overview: Cup dispenser helps in dispensing single cup every time automatically. Careful arrangement of gears and sensors enable this device to dispense only one cup at a time without failure. This unit comes with poka-yokes for smooth operation Caution: Care to be taken before stacking the cups, uneven and damaged cups might cause trouble

Specifications:

  • Dimensions:
  • Sensors used:IR sensor and Magnetic reed switch
  • Motor:12v, 30RPM, 0.34NM

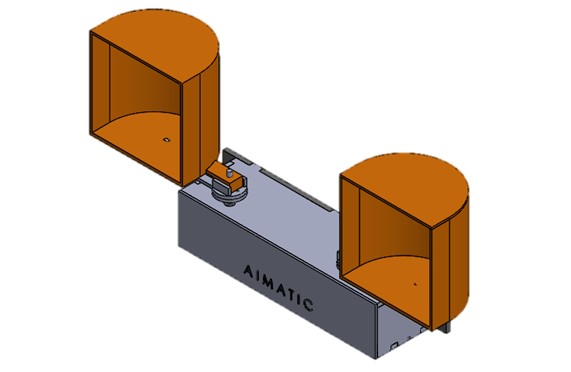

DUAL REVOLVING DOOR

Product name: Dual Revolving door
Version:03
Product phase:production
Current date:06-04-2022
Material:MS and acrylic
Window dimensions::137 X 140
Product overview: Dual Revolving door can used to delivery products out from your vending machine. Door unit is equipped with IR sensors to enable window to revolve and open when product reaches dispatch area. Window automatically closes when the product is extracted/ taken out. Semi-transparent window enables customers to see what product is being delivered. Caution:Residue formation on IR sensor might impact the functionality. Wipe it with a soft cloth regularly

Specifications:

    Dimensions:
  • Sensors used: IR sensor and Magnetic reed switch
  • Window: semi-transparent acrylic
  • Motor: 12v, 30 RPM, 0.34NM

    • Customization on request:
  • Delivery window size
  • Window colour
  • Speed of revolution

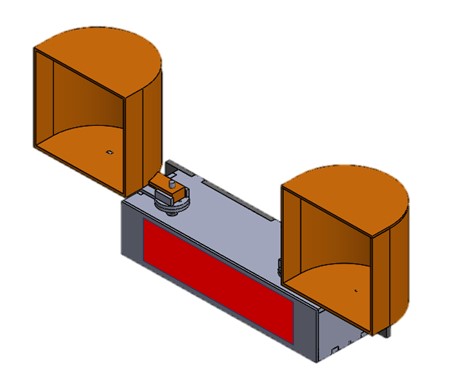

DUAL REVOLVING DOOR WITH 9 DIGIT DISPLAY & BEEPER

Product name: Dual Revolving door
Version:03
Product phase:production
Current date:06-04-2022
Material:MS and acrylic
Window dimensions::137 X 140
Product overview: : Dual Revolving door can used to delivery products out from your vending machine. Door unit is equipped with IR sensors to enable window to revolve and open when product reaches dispatch area. Window automatically closes when the product is extracted/ taken out. Semi-transparent window enables customers to see what product is being delivered. This unit comes with inbuilt 9 digit dot matrix display and a beeper
Caution:Residue formation on IR sensor might impact the functionality. Wipe it with a soft cloth regularly

Specifications:

    Dimensions:
  • Sensors used: IR sensor and Magnetic reed switch
  • Window: semi-transparent acrylic
  • Motor: 12v, 30 RPM, 0.34NM

    • Customization on request:
  • Delivery window size
  • Window colour
  • Speed of revolution

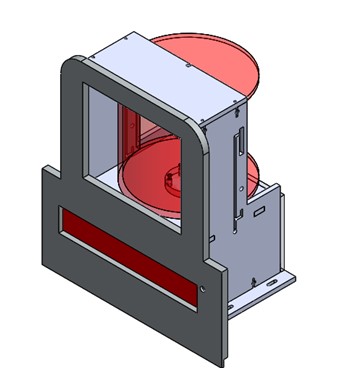

REVOLVING DOOR WITH 9 DIGIT DISPLAY & BEEPER

Product name: Food grade fluid pump 12v
Version: 05
Product phase: production
Current date: 05-04-2022
Product overview: Revolving door can used to delivery products out from your vending machine. Door unit is equipped with IR sensors to enable window to revolve and open when product reaches dispatch area. Window automatically closes when the product is extracted/ taken out. Semi-transparent window enables customers to see what product is being delivered. This unit comes with inbuilt 9-digit dot matrix display and beeper. Caution: Residue formation on IR sensor might impact the functionality. Wipe it with a soft cloth regularly
Specifications:
  • Dimensions: 137 X 140 mm
  • Sensors used: IR sensor and Magnetic reed switch
  • Window: semi-transparent acrylic
  • Motor: 12v, 30 RPM, 0.34NM
Customization on request:
  • Delivery window size
  • Window colour
  • Speed of revolution

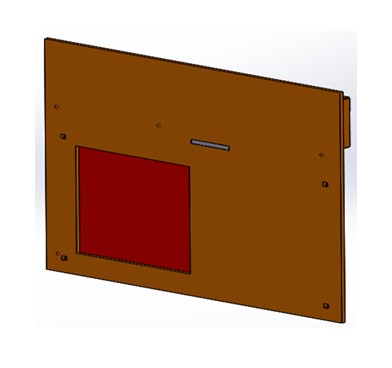

SLIDER DOOR

  • Product name: Slider door
  • Version: 03
  • Product phase: production
  • Current date: 06-04-2022
  • Material: MS and acrylic
  • Window dimensions: 150 X 170 mm

Specifications:

  • Dimensions: 150X170 mm
  • Sensors used: IR sensor and Magnetic reed switch
  • Window: semi-transparent acrylic
  • Motor: 12v, 30 RPM, 0.34NM
Product overview: Slider door can used to delivery products out from your vending machine. Door unit is equipped with IR sensors to enable window to open when product reaches dispatch area. Window automatically closes when the product is extracted/ taken out. Semi-transparent window enables customers to see what product is being delivered. Caution: Residue formation on IR sensor might impact the functionality. Wipe it with a soft cloth regularly


Customization on request:

  • Delivery window size
  • Window colour
  • Speed of door
